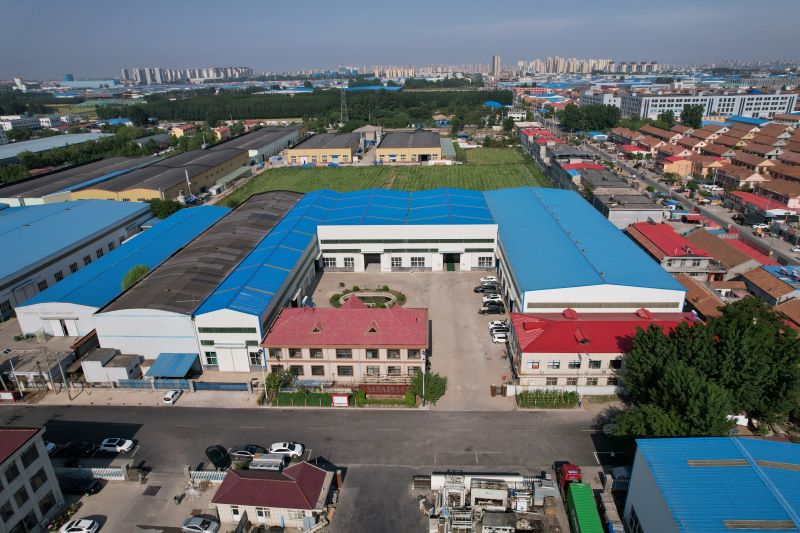

                                                                             Qingdao Comrise Machinery Co., Ltd.

Our main products are plastic extrusion production lines and WPC Decking Profile Machine

The main products are popular in the domestic market, such as the East China market, Southwest market, Northeast market, Central China market, etc. The products are also exported to international markets, including Russia, Australia, Southeast Asia, the Middle East, and Eastern Europe. Africa and other countries. Customers from these countries have established cooperative relationships with us and the cooperation is very pleasant.

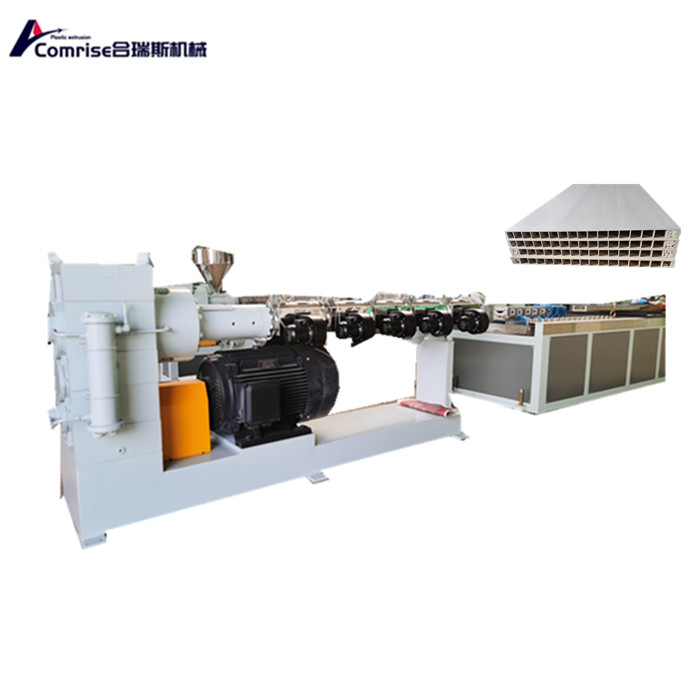

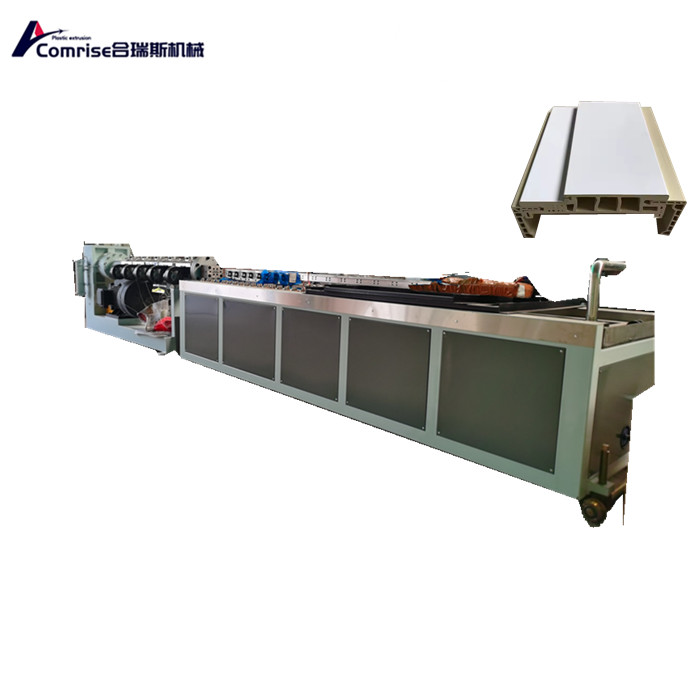

                                                                                         Window Door Profile Machine

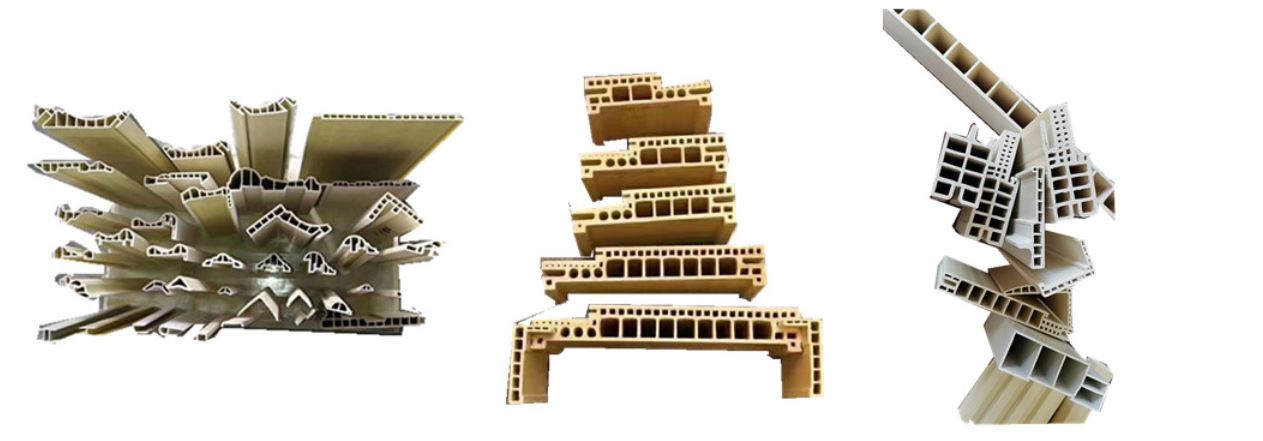

The series profile machine is mainly used for producing PVC door and window profiles, PVC/WPC floor profiles, PVC corner profiles, PVC imitation marble profiles, etc.

This production line consists of twin-screw extruders, vacuum forming tables, tractors, cutting machines, laminating machines, etc., and can meet different customer requirements by simply changing the mold and extruder capacity Usage scenarios.Extremely flexible and convenient.

It is mainly used for making PVC/PE and other plastic profiles with different profile break-section moulds.

It can also produce different Wood+plastic profiles as long as you change moulds.

The production line includes auto feeder, plastic extruder and Co extruder, mould, vacuum forming table, haul off unit, auto

cutting machine, stacker.Auxiliary equipments: mixer, crusher, air compressor and so on.

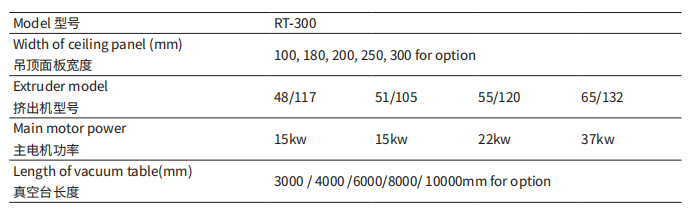

Specifiation Parameters

Products Description

1.SJSZ65x132 Twin-screw Extruder

Extruder model: SJSZ65x132

Capacity: 250kg/h

Frequency converter: Schneider or Delta

Contactor: Siemens

Motor: Siemens, 37KW

Temperature control: Omron

Vacuum pump: 4KW

Feed: Screw feed with motor

2.Calibration Platform

Length: 3000mm

Electric forward drive motor: 1.5kw

Equipped with vacuum motor and water motor Circulating water cooling platform

Material: Stainless steel

3.Two claw tractor

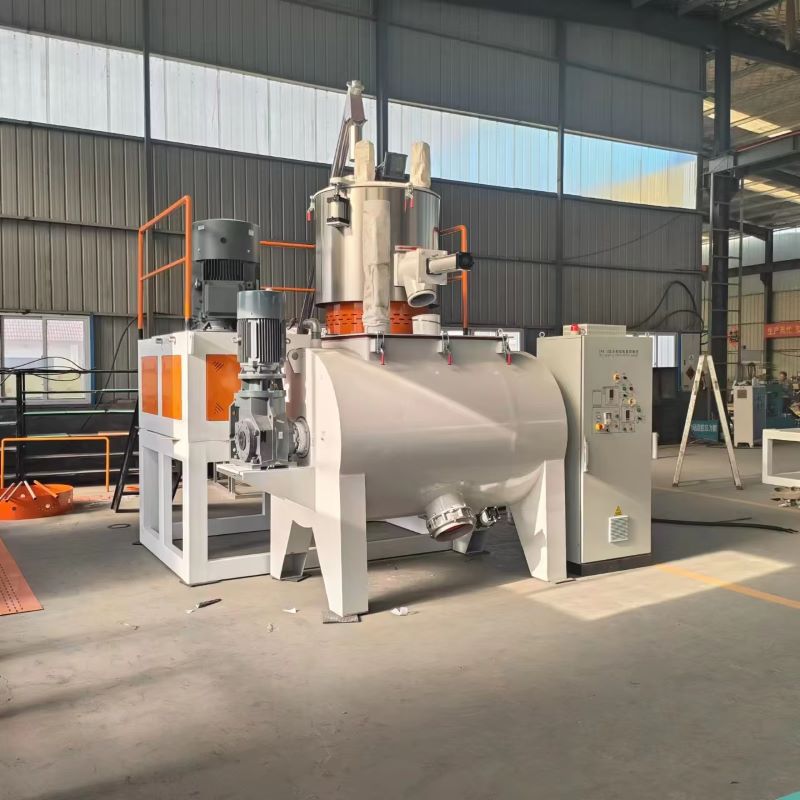

4.Mixer

Electric voltage condition:AC220V±10% 50Hz 3P+E

Compressed air:0.4~0.6Mpa G.(DP≤10ºC)

Cool off water: ≤15ºC 0.3~0.4Mpa 90L/min

Output: 450-500kg/Power: 55K/75KWtwo speed power

heating method: /self-friction

Temperature control type: RKC/RKC Thermometer

Material of pot cover: The aluminum metal alloy casts

pot cover start&stop control: air control

putout control: air control

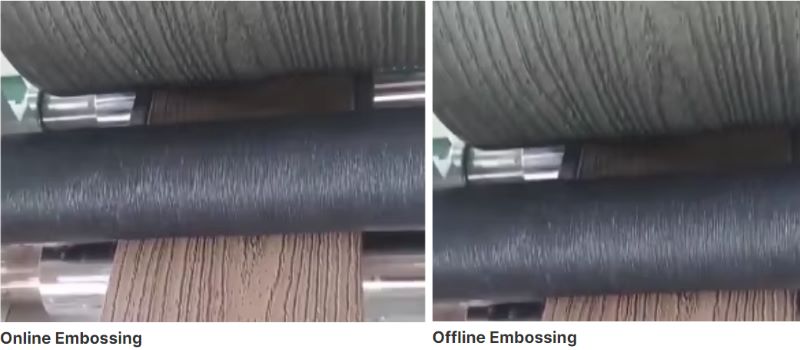

5.Online Embossing
